Matsuta
N Series

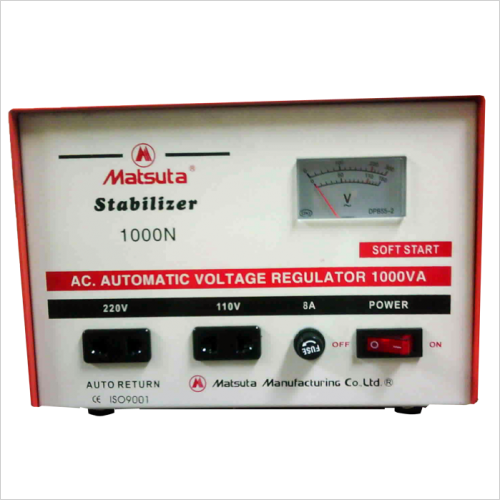

Matsuta Stabilizer N 1000 is one of several option in N Series that comes with 1,000 VA capacity and 5-10 Amp maximum input current. AC Automatic Voltage Regulator Electronic Sensor unit monitors the input voltage stability continuously, and every changes of the voltage will drive the servo-motor to work faster but still in control.
|
Specification
|
||
| Phase | Three Phase, Four Wire | |
| Input Voltage | 120V ~240V /310V ~ 430V | |
| Output Voltage | 190V +- 2% /380V +- 1 % | |
| Frequency | 50 Hz / 60 Hz | |
| Response Time | Within 1 second against 10% input voltage deviation | |
| Efficiency | Better than 95% (Input voltage 180V, output voltage 220V and at rated load) | |
| Ambient Temperature | -5C degree - +40C degree | |
| Ambien Humidity | Less than 90% (relative humadity) | |
| Temperature Rise | Less than 75C degree (Input voltage 180V,Output voltage 220V and at rated load) | |
| Cooling System | Convection-cooled | |
| Control System | DC servo-motor | |
