Products Stabilizer

Matsuta

R Series

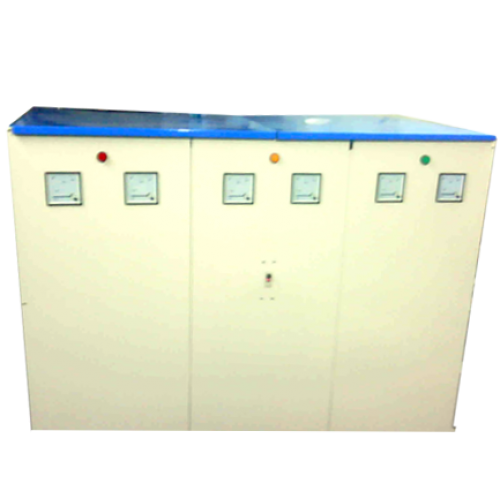

Matsuta Stabilizer R Series comes with a variety models (R6 - R200), with capacity range between 6 kVA up to 200 kVA, and maximum input current 10 Amp 3q - 250 Amp 3q. The AC Automatic Voltage Regulator Electronic Sensor unit monitors the input voltage stability continuously, and every changes of the voltage will drive the servo-motor to work faster but still in control.

Spesifikasi
Phase Three Phase, Four Wire
Input Voltage 120V ~240V /310V ~ 430V
Output Voltage 190V +- 2% /380V +- 1 %
Frequency 50 Hz / 60 Hz
Response Time Within 1 second against 10% input voltage deviation
Efficiency Better than 95% (Input voltage 180V, output voltage 220V and at rated load)
Ambient Temperature -5°C - +40°C degree
Ambien Humidity Less than 90% (relative humadity)
Temperature Rise Less than 75°C(Input voltage 180V,Output voltage 220V and at rated load)
Cooling System Convection-cooled
Control System DC servo-motor
