UPS Seri SE
ICA UPS Serie SE adalah UPS sistem on-line dengan kondisi power yang diberikan secara terus-menerus bahkan untuk beban yang terpasang pun. ICA UPS terus mengatur dan menyaring tegangan input AC, memasok tegangan yang AC bersih dan stabil untuk output sekaligus untuk mengisi baterai. Ketika input tegangan AC rendah, UPS melindungi beban seketika dan memasok tegangan AC yang stabil tanpa memakan waktu transfer. Berikut beberapa model dan kapasitas dari UPS Serie SE.
| Spesifikasi | ||||

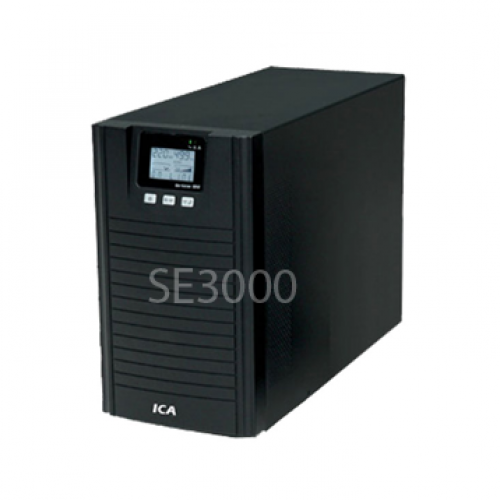

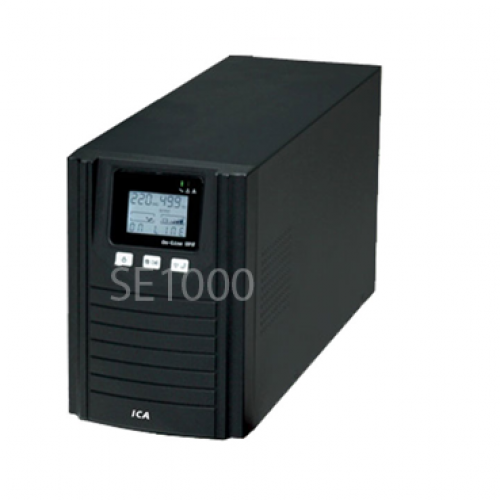

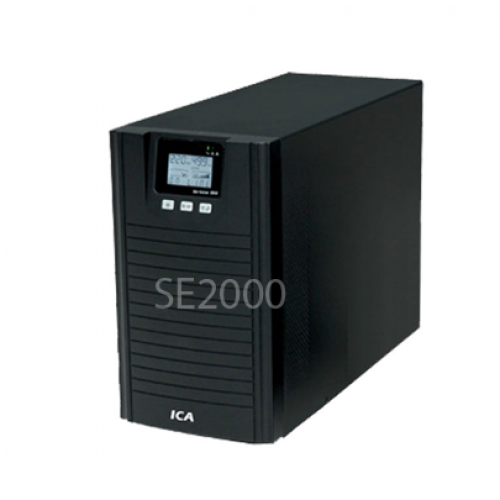

| Model | UPS SE1000 | UPS SE2000 | UPS SE3000 | |
| Capacity | 1000 VA / 700 W | 2000 VA / 1200 W | 3000 VA / 2100 W | |
| AC Voltage | 110 ~ 285 V / 160 ~ 285 V | 110 ~ 285 V / 160 ~ 285 V | 110 ~ 285 V / 160 ~ 285 V | |
| AC Frequency | 50 ± 5 Hz | 50 ± 5 Hz | 50 ± 5 Hz | |
| AC Protection | 6 A | 12A | 16 A | |
| DC Voltage | 36 V | 96 V | 96 V | |
| DC INT Battery | 3 x 12 V, 7 Ah | 8 x 12 V, 7 Ah | 8 x 12 V, 7 Ah | |
| DC Protection | FUSE | FUSE | FUSE | |
| CHG Topology | SWITCHING REGULATION | SWITCHING REGULATION | SWITCHING REGULATION | |
| CHG Floating Voltage | 40.8 V | 108.8 V | 108.8 V | |
| INV Waveform | SINEWAVE | SINEWAVE | SINEWAVE | |
| INV Distorsion | < 3% THD | < 3% THD | < 3% THD | |
| INV Topology | PULSE WIDTH MODULATION (PWM) | PULSE WIDTH MODULATION (PWM) | PULSE WIDTH MODULATION (PWM) | |
| INV Voltage | 220 ± 1% V | 220 ± 1% V | 220 ± 1% V | |
| INV Frequency | 50 ± 1% Hz | 50 ± 1% Hz | 50 ± 1% Hz | |
| INV Efficiency | > 83% | > 85% | > 85% | |
| Transfer Time When AC In Loss | 0 ms | 0 ms | 0 ms | |
| Transfer Time STS | 2 ms Inverter to Bypass, 0 ms Back To Inverter | 2 ms Inverter to Bypass, 0 ms Back To Inverter | 2 ms Inverter to Bypass, 0 ms Back To Inverter | |
| Back Up Time | 10 min | 10 min | 10 min | |
| BZR AC Input Abnormall | INTERMITTENT SOUND WITH 4 SECONDS INTERVAL | INTERMITTENT SOUND WITH 4 SECONDS INTERVAL | INTERMITTENT SOUND WITH 4 SECONDS INTERVAL | |
| BZR Battery Low | INTERMITTENT SOUND WITH 1 SECONDS INTERVAL | INTERMITTENT SOUND WITH 1 SECONDS INTERVAL | INTERMITTENT SOUND WITH 1 SECONDS INTERVAL | |
| Opera Temp | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | |
| Dimension(DxWxH) | 412 x 144 x 213 mm | 470 x 191 x 338 mm | 470 x 191 x 338 mm | |
| Weight | 16 Kg | 35 Kg | 36 Kg | |
