Yoritsu

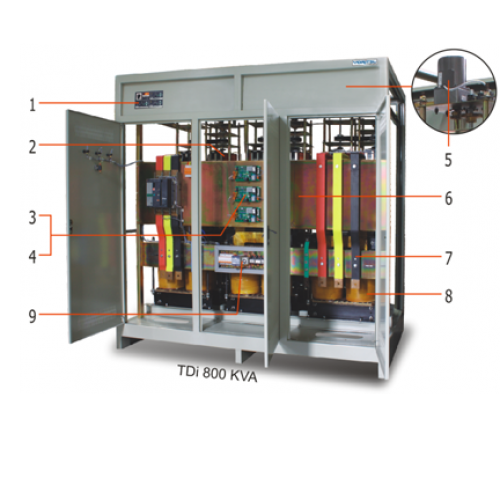

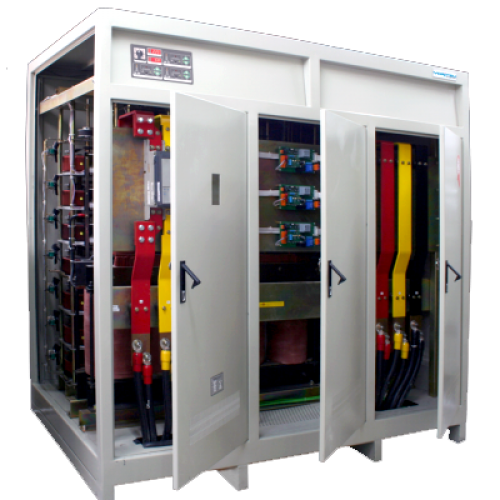

TDi 800 KVA
Inilah stabilizer digital pilihan para teknisi, yang memiliki fitur utama: visualisasi digital dari tegangan output; CNC mesin untuk memastikan konsistensi dalam presisi dan kekuatan tarikan; tegangan output stabil dan akurat; efisiensi tinggi >98% sehingga menghemat biaya perawatan.
| Spesifikasi | ||
| Input Voltage | 160 V - 240 V / 278 V - 415 V | |
| Output Voltage | 220 V ± 2% / 380 V ± 1% | |
| Frequency | 45 Hz - 60 Hz | |
| Response time | Within 1 second againts 10% input voltage deviation | |
| Efficiency | Better than 98% (input voltage 180V, output voltage 220V and at rated load) | |
| Respon Time | Within 1 Second againt 10% input voltage deviation | |
| Ambient Temperature | -5°C +40°C | |
| Ambien Humidity | Less than 90% (relative humidity) | |
| Temperature Rise | Less than 750 C (input voltage 180V, output voltage 220 V and at rated load) | |
| Cooling System | Convention-cooled | |
| Control System | AC - DC Servo motor | |
| Dielectric Strength | 3000 V for 1 Min | |
