ICA
UPS Seri PN
UPS ICA seri PN, inverter hanya bekerja bila tegangan input AC rendah atau hilang. Ketika tegangan input AC dalam kondisi normal, ICA UPS akan menstabilkan dan menyaring tegangan input AC dan pasokan tegangan AC bersih dan stabil untuk output ICA UPS dan mengisi baterai. Ketika tegangan input AC rendah atau kerugian, inverter akan menggantinya dan pasokan tegangan AC yang stabil dalam waktu transfer yang sangat singkat.
| Spesifikasi | |||||

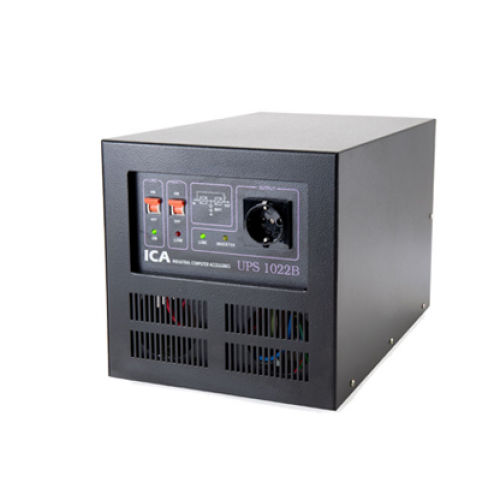

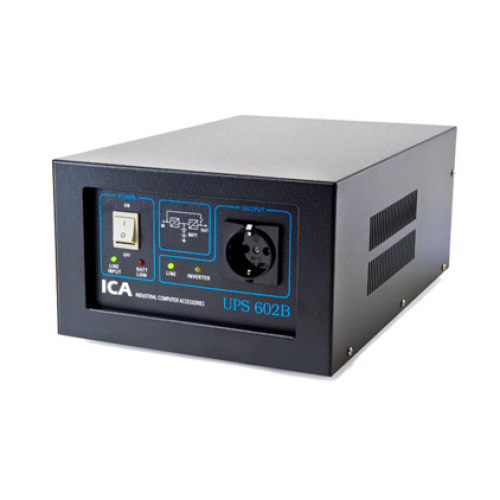

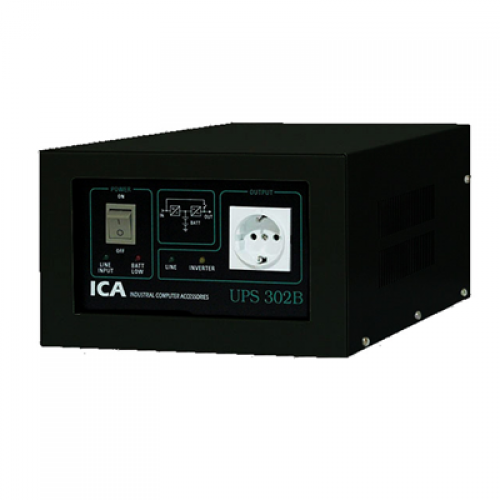

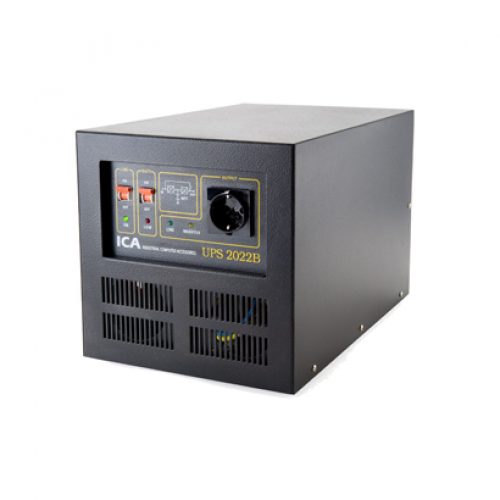

| Model | UPS UPS602B | UPS UPS302B | UPS UPS1022B | UPS UPS2022B | |
| Capacity | 1200 VA / 600 W | 600 VA / 300 W | 2000 VA / 1000 W | 4000 VA / 2000 W | |
| AC Voltage | 160 - 250 V | 160 - 250 V | 160 - 250 V | 160 - 250 V | |
| AC Current | 3.4 A | 1.7 A | 5.6 A | 10.2 A | |
| AC Frequency | 50 ± 5% Hz | 50 ± 5% Hz | 50 ± 5% Hz | 50 ± 5% Hz | |
| AC Protection | Fuse 6.3 A | Fuse 6.3 A | MCB 10 A | MCB 10 A | |
| DC INT Battery | 2 x 12 V, 7 Ah | 1 x 12 V, 7 Ah | 3 x 12 V, 7 Ah | *)4 x 12 V, 14 Ah | |
| DC EXT Battery | 2 x 12 V, Max 40 Ah | 1 x 12 V, Max 40 Ah | 3 x 12 V, Max 40 Ah | 4 x 12 V, Max 40 Ah | |
| DC Protection Fuse | 40 A | 40 A | 32 A | 63 A | |
| INV Waveform | SYNTHESIZED SINEWAVE | SYNTHESIZED SINEWAVE | SYNTHESIZED SINEWAVE | SYNTHESIZED SINEWAVE | |
| INV Voltage | 220 ± 5% V | 220 ± 5% V | 220 ± 5% V | 220 ± 5% V | |
| INV Frequency | 50 Hz | 50 Hz | 50 Hz | 50 Hz | |
| INV Efficiency | >80 % | >80 % | >80 % | >80 % | |
| CHG Type | CONSTANT VOLTAGE | CONSTANT VOLTAGE | CONSTANT VOLTAGE | CONSTANT VOLTAGE | |
| CHG Voltage | 27.0 V | 13.5 V | 40.5 V | 54.0 V | |
| CHG Current | 1.5 A | 1.5 A | 3 A | 3 A | |
| Transfer Time | <4 ms | <4 ms | <4 ms | <4 ms | |
| Back Up Time | 10 min | 10 min | 10 min | 10 min | |
| Indicator | LED & BUZZER | LED & BUZZER | LED & BUZZER | LED & BUZZER | |
| Opera Temp | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | 0 - 40 °C | |
| Dimension(DxWxH) | 401 x 260 x 170 mm | 401 x 260 x 170 mm | 402 x 260 x 285 mm | 402 x 260 x 285 mm | |
| Weight | 18 Kg | 12.5 Kg | 31.5 Kg | 27*) Kg | |
