Matsuyama

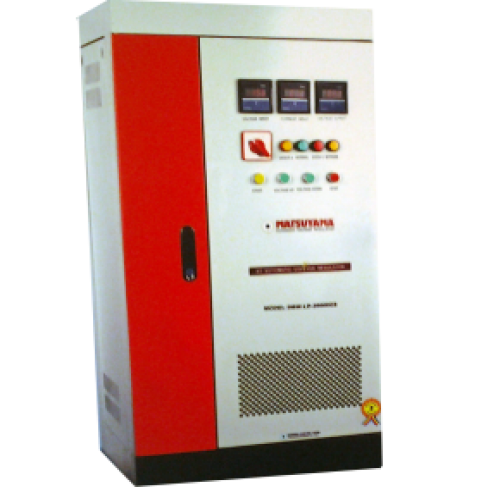

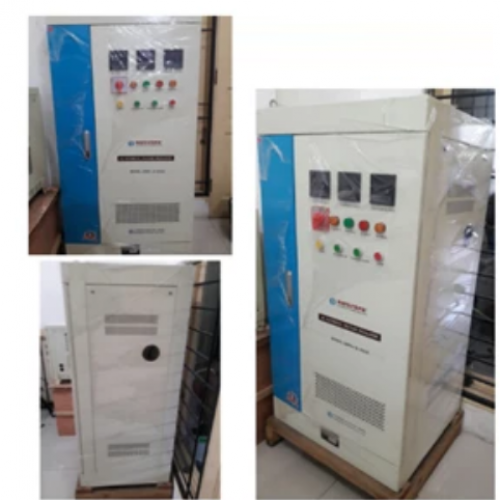

DBW /LD-20000GS
DBW /LD-20000GS dengan kapasitas 20KVA, jenis ini termasuk kedalam Three phase yang memiliki sistem DC Servo Motor dapat menstabilkan tegangan masuk yang naik turun dan perubahan beban agar tegangan keluaran selalu stabil.
| Spesifikasi | ||
| Phase | Three Phase | |
| Input Voltage | 280 V – 430 V (Volt Standard(L)) & 230 V – 430 V (Volt Standard(K)) | |
| Output Voltage | 380 V ± 2% (Volt Standard(L)) & 380 V ± 2% (Volt Standard(K)) | |
| Output | Over Voltage protection 3 phase 430 V automatic cut off | |
| Frequency | 50/60Hz | |
| Respon Time | Within 1 Second againt 10% input voltage deviation | |
| Efficiency | Better than 98%(Input Voltage 180 V, Output Voltage 220 V) | |
| Ambient Temperature | -5°C +40°C | |
| Ambien Humidity | Less than 90% (relative humadity) | |
| Temperature Rise | Less than 75°C (Input voltage 180V,Output voltage 220V) | |
| Cooling System | Convection-cooled | |
| Control System | AVR:DC Servo Motor, SBW: AC Servo Motor | |
